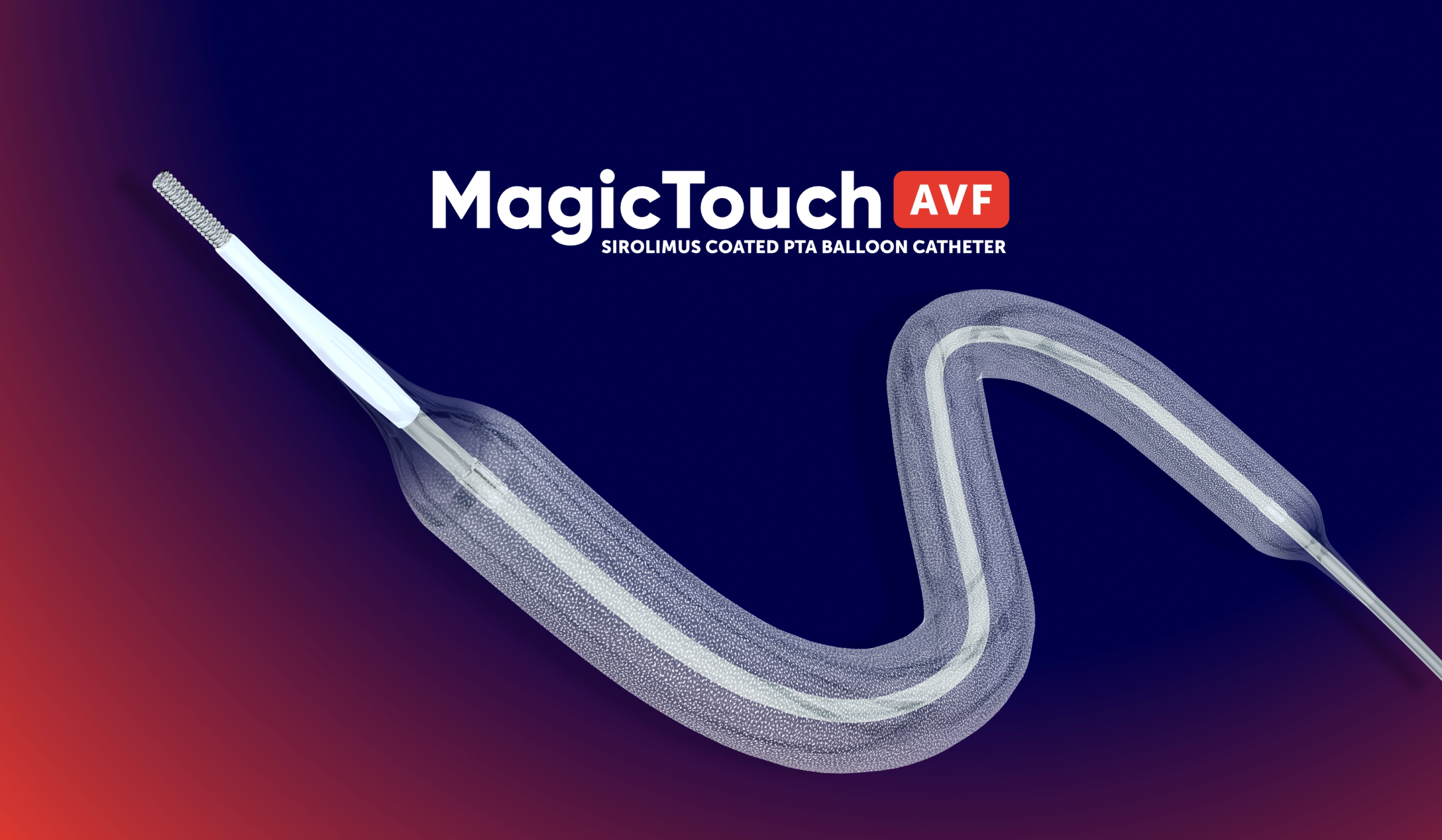

MagicTouch AVF Designed with Nanolute technology is intended for stenotic lesions of dysfunctional arteriovenous fistula and graft.
Touch to Treat with Hemodialysis Access
Designed for patients requiring dialysis access, specifically addressing stenotic lesions in AV grafts & dysfunctional fistulas by emphasizing on prevention of recurrent intervention & higher patency.
- Only US FDA SCB with IDE approval for AVF indication
- The most clinically studied SCB
- CE Approved
02
- Stenotic Lesions in dialysis patients especially
- Thrombosed Graft
03
Nanolute is an advanced drug delivery technology designed to enhance the efficiency of drug administration and retention, enabling sustained delivery from non-implantable devices. Nanolute is capable of delivering drugs effectively, regardless of whether their lipophilicity is poor or high.
Unique coating technology
COATING
Circumferential Coating is
performed under Low Pressure inflation
leading to 100% surface area coating
REFOLDING
3 & 6 Folds
INFLATION
Homogeneous Drug Delivery
due to Circumferential Coating
TECHNOLOGY
An innovative proprietary Nanolute technology providing better bioavailability of SIROLIMUS
DRUG
Sirolimus: A drug with proven safety profile
COATING
Unique coating technology leads to 100% balloon surface coating
CARRIER
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus
05
Technical SpecificationsOrdering Information For Concept BVTechnical SpecificationsDrug/Excipient
| Drug | Sirolimus |
| Drug Dose | 1.27 μg/mm² |
| Drug Carrier | Phospholipid |
Balloon
| Balloon Compliance | Semi-Compliant |
| Sheath Compatibility | 6F, 7F, 8F |
| No. of Folds | 3 & 6 |
Size Available
| Balloon Diameter(mm | 3.00,4.00,5.00,6.00,7.00,8.00,9.00,10.00,12.00 |
| Balloon Length(mm) | 20,40,60,80,100,120,150,200 |
| Catheter Shaft Length(cm) | 45 &90 |
Delivery System
| Guide wire Compatibility | 0.035” OTW |
| Guiding Catheter Compatibility | 7F to 9F |
DRUG/EXCIPIENT
Drug
Drug Dose
Drug Carrier
1.27µg/mm²
Phospholipid
Catheter design
Rapid Exchange(RX) Design
Ordering Information | 0.035" OTW | Length (Shaft Length = 80cm = 800 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMFW35001 | CMFW35002 | CMFW35003 | CMFW35004 | NA | NA | NA | NA |
| 4.00 | CMFW35005 | CMFW35006 | CMFW35007 | CMFW35008 | CMFW35009 | CMFW35042 | CMFW35043 | CMFW35044 | |
| 5.00 | CMFW35010 | CMFW35011 | CMFW35012 | CMFW35013 | CMFW35014 | CMFW35045 | CMFW35046 | CMFW35047 | |
| 6.00 | CMFW35015 | CMFW35016 | CMFW35017 | CMFW35018 | CMFW35019 | CMFW35048 | CMFW35049 | CMFW35050 | |
| 7.00 | CMFW35020 | CMFW35021 | CMFW35022 | CMFW35023 | CMFW35024 | CMFW35051 | CMFW35052 | CMFW35053 | |
| 8.00 | CMFW35025 | CMFW35026 | CMFW35027 | CMFW35028 | CMFW35029 | CMFW35054 | CMFW35055 | CMFW35056 | |
| 9.00 | CMFW35030 | CMFW35031 | CMFW35032 | CMFW35033 | NA | NA | NA | NA | |
| 10.00 | CMFW35034 | CMFW35035 | CMFW35036 | CMFW35037 | NA | NA | NA | NA | |
| 12.00 | CMFW35038 | CMFW35039 | CMFW35040 | CMFW35041 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 90cm = 900 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMFW35057 | CMFW35058 | CMFW35059 | CMFW35060 | NA | NA | NA | NA |
| 4.00 | CMFW35061 | CMFW35062 | CMFW35063 | CMFW35064 | CMFW35065 | CMFW35066 | CMFW35067 | CMFW35068 | |
| 5.00 | CMFW35069 | CMFW35070 | CMFW35071 | CMFW35072 | CMFW35073 | CMFW35074 | CMFW35075 | CMFW35076 | |
| 6.00 | CMFW35077 | CMFW35078 | CMFW35079 | CMFW35080 | CMFW35081 | CMFW35082 | CMFW35083 | CMFW35084 | |
| 7.00 | CMFW35085 | CMFW35086 | CMFW35087 | CMFW35088 | CMFW35089 | CMFW35090 | CMFW35091 | CMFW35092 | |
| 8.00 | CMFW35093 | CMFW35094 | CMFW35095 | CMFW35096 | CMFW35097 | CMFW35098 | CMFW35099 | CMFW35100 | |
| 9.00 | CMFW35101 | CMFW35102 | CMFW35103 | CMFW35104 | NA | NA | NA | NA | |
| 10.00 | CMFW35105 | CMFW35106 | CMFW35107 | CMFW35108 | NA | NA | NA | NA | |
| 12.00 | CMFW35109 | CMFW35110 | CMFW35111 | CMFW35112 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 130cm = 1300 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMFW35153 | CMFW35154 | CMFW35155 | CMFW35156 | NA | NA | NA | NA |
| 4.00 | CMFW35157 | CMFW35158 | CMFW35159 | CMFW35160 | CMFW35161 | CMFW35162 | CMFW35163 | CMFW35164 | |
| 5.00 | CMFW35165 | CMFW35166 | CMFW35167 | CMFW35168 | CMFW35169 | CMFW35170 | CMFW35171 | CMFW35172 | |
| 6.00 | CMFW35173 | CMFW35174 | CMFW35175 | CMFW35176 | CMFW35177 | CMFW35178 | CMFW35179 | CMFW35180 | |
| 7.00 | CMFW35181 | CMFW35182 | CMFW35183 | CMFW35184 | CMFW35185 | CMFW35186 | CMFW35187 | CMFW35188 | |
| 8.00 | CMFW35189 | CMFW35190 | CMFW35191 | CMFW35192 | CMFW35193 | CMFW35194 | CMFW35195 | CMFW35196 | |
| 9.00 | CMFW35197 | CMFW35198 | CMFW35199 | CMFW35200 | NA | NA | NA | NA | |
| 10.00 | CMFW35201 | CMFW35202 | CMFW35203 | CMFW35204 | NA | NA | NA | NA | |
| 12.00 | CMFW35205 | CMFW35206 | CMFW35207 | CMFW35208 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 150 cm = 1500 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMFW35209 | CMFW35210 | CMFW35211 | CMFW35212 | NA | NA | NA | NA |
| 4.00 | CMFW35213 | CMFW35214 | CMFW35215 | CMFW35216 | CMFW35217 | CMFW35218 | CMFW35219 | CMFW35220 | |
| 5.00 | CMFW35221 | CMFW35222 | CMFW35223 | CMFW35224 | CMFW35225 | CMFW35226 | CMFW35227 | CMFW35228 | |
| 6.00 | CMFW35229 | CMFW35230 | CMFW35231 | CMFW35232 | CMFW35233 | CMFW35234 | CMFW35235 | CMFW35236 | |
| 7.00 | CMFW35237 | CMFW35238 | CMFW35239 | CMFW35240 | CMFW35241 | CMFW35242 | CMFW35243 | CMFW35244 | |
| 8.00 | CMFW35245 | CMFW35246 | CMFW35247 | CMFW35248 | CMFW35249 | CMFW35250 | CMFW35251 | CMFW35252 | |
| 9.00 | CMFW35253 | CMFW35254 | CMFW35255 | CMFW35256 | NA | NA | NA | NA | |
| 10.00 | CMFW35257 | CMFW35258 | CMFW35259 | CMFW35260 | NA | NA | NA | NA | |
| 12.00 | CMFW35261 | CMFW35262 | CMFW35263 | CMFW35264 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 45 cm = 450 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMFW35113 | CMFW35114 | CMFW35115 | CMFW35116 | NA | NA | NA | NA |
| 4.00 | CMFW35117 | CMFW35118 | CMFW35119 | CMFW35120 | CMFW35121 | CMFW35122 | NA | NA | |
| 5.00 | CMFW35123 | CMFW35124 | CMFW35125 | CMFW35126 | CMFW35127 | CMFW35128 | NA | NA | |
| 6.00 | CMFW35129 | CMFW35130 | CMFW35131 | CMFW35132 | CMFW35133 | CMFW35134 | NA | NA | |
| 7.00 | CMFW35135 | CMFW35136 | CMFW35137 | CMFW35138 | CMFW35139 | NA | NA | NA | |
| 8.00 | CMFW35140 | CMFW35141 | CMFW35142 | CMFW35143 | CMFW35144 | NA | NA | NA | |
| 9.00 | CMFW35145 | CMFW35146 | CMFW35147 | CMFW35148 | NA | NA | NA | NA | |
| 10.00 | CMFW35149 | CMFW35150 | CMFW35151 | CMFW35152 | NA | NA | NA | NA | |
