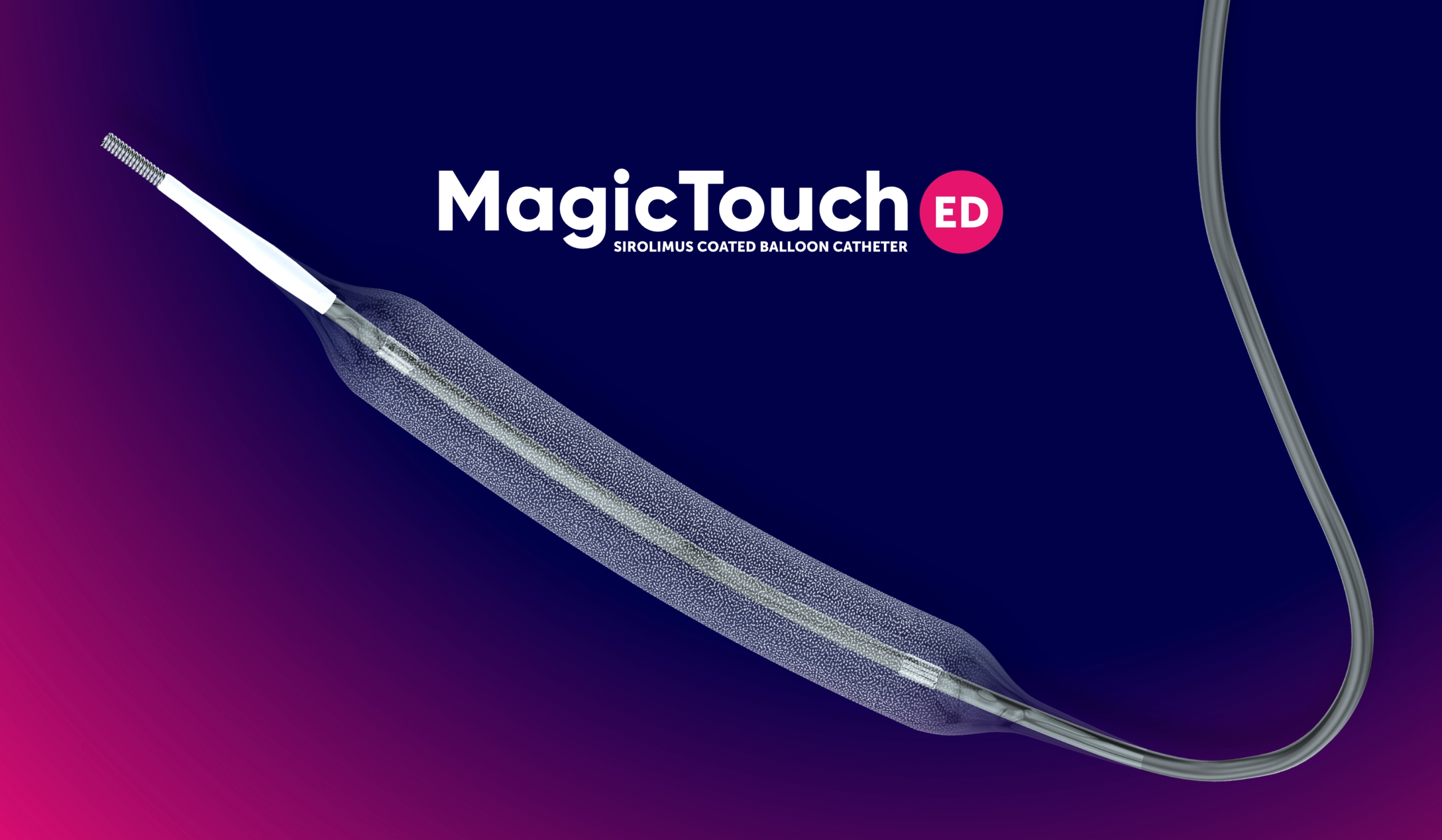

MagicTouch ED is a Sirolimus Coated Balloon for treatment of Erectile Dysfunction for male patients with de novo and restenotic lesions in the internal pudendal, dorsal or urethral arteries.
The only Sirolimus-coated balloon approved technology for addressing Erectile dysfunction and improving quality of sexual life
World’s only approved SCB for ED Treatment
CE Approved
02
- Critical Stenosis of Pudendal and Dorsalis Penis arteries
03

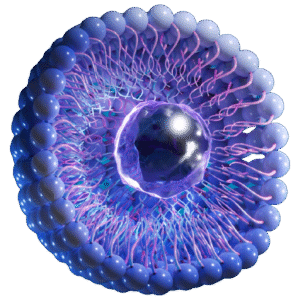

Nanolute is an advanced drug delivery technology designed to enhance the efficiency of drug administration and retention, enabling sustained delivery from non-implantable devices. Nanolute is capable of delivering drugs effectively, regardless of whether their lipophilicity is poor or high.
Unique coating technology
COATING
Circumferential Coating is
performed under Low Pressure inflation
leading to 100% surface area coating
REFOLDING
3
INFLATION
Homogeneous Drug Delivery
due to Circumferential Coating
TECHNOLOGY
An innovative proprietary Nanolute technology providing better bioavailability of SIROLIMUS
Sirolimus: A drug with proven safety profile
COATING
Unique coating technology leads to 100% balloon surface coating
CARRIER
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus
05
Technical SpecificationsOrdering Information For Concept BVTechnical SpecificationsDrug/Excipient
| Drug | Sirolimus |
| Drug Dose | 1.27 μg/mm² |
| Drug Carrier | Phospholipid |
Balloon
| Balloon Material | Polyamide |
| Catheter Desing | RX/Monorail |
| No. of Folds | 3** |
| Compliance | Semi -compliant |
Delivery System
| Shaft Diameter-Proximal | 1.95 F |
| Shaft Diameter-Distal | 2.67 F |
| Usable Catheter Length | 140cm |
| Tip Profile | 0.016” |
| Nominal Pressure | 8 bar |
| Rated Burst Pressure | 14 bar* |
| Guiding Catheter Compatibility | 6F |
| Guidewire Compatibility | 0.014” |
| Crossing Profile(varies With Size) | 0.029 |
DRUG/EXCIPIENT
Drug
Drug Dose
Drug Carrier
1.27µg/mm²
Phospholipid
Catheter design
Rapid Exchange(RX) Design
Ordering Information | Dia./Length (mm) | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
|---|---|---|---|---|---|---|---|
| 1.50 | CME15010 | CME15015 | CME15020 | CME15025 | CME15030 | CME15035 | CME15040 |
| 2.00 | CME20010 | CME20015 | CME20020 | CME20025 | CME20030 | CME20035 | CME20040 |
| 2.25 | CME22510 | CME22515 | CME22520 | CME22525 | CME22530 | CME22535 | CME22540 |
| 2.50 | CME25010 | CME25015 | CME25020 | CME25025 | CME25030 | CME25035 | CME25040 |
| 2.75 | CME27510 | CME27515 | CME27520 | CME27525 | CME27530 | CME27535 | CME27540 |
| 3.00 | CME30010 | CME30015 | CME30020 | CME30025 | CME30030 | CME30035 | CME30040 |
| 3.25 | CME32510 | CME32515 | CME32520 | CME32525 | CME32530 | CME32535 | CME32540 |
| 3.50 | CME35010 | CME35015 | CME35020 | CME35025 | CME35030 | CME35035 | CME35040 |
| 4.00 | CME40010 | CME40015 | CME40020 | CME40025 | CME40030 | CME40035 | CME40040 |
For Concept BV
