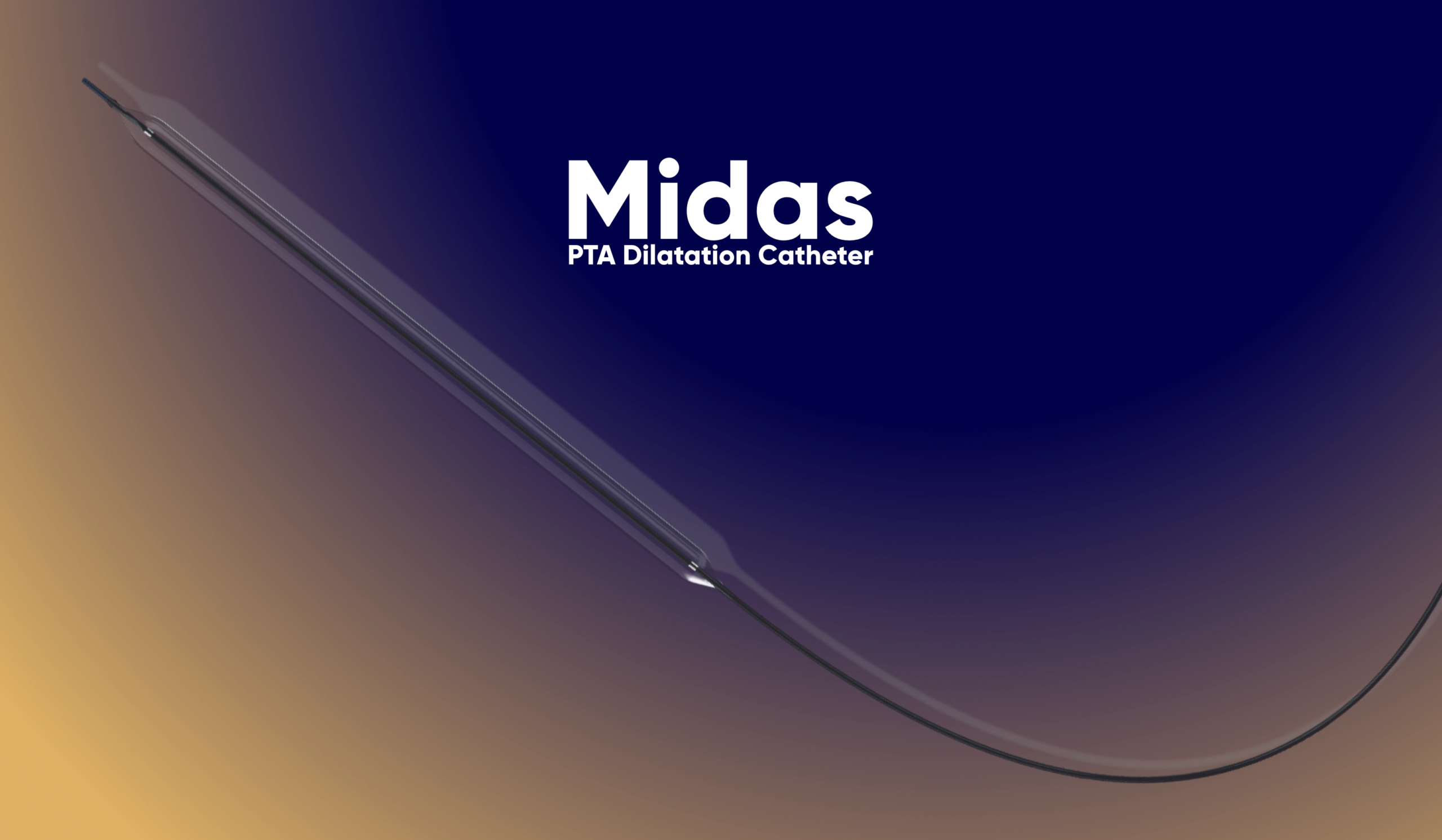

The Midas PTA Dilatation catheter is intended for percutaneous transluminal angioplasty in a wide array of peripheral arteries. One Point Solution PTA dilatation catheter for treating Peripheral Vascular disease including Iliac, Femoral, Popliteal, Tibial, Peroneal arteries and obstructive lesions of native or synthetic arteriovenous dialysis fistulae.
01
One Point Solution PTA dilatation catheter
Wide Size Matrix
Wide Size matrix and Guide wire Compatibility to treat the majority of Peripheral Anatomies.
Crossablity
Designed for Excellent Pushability & Trackability
Low-Profile
5F Compatible Catheter with atraumatic Low profile Tip of 0.020” for better Crossability while treating the Above and BTK lesions
Re-wrap
Better Balloon Re‐wrapping for low crossing profile
Design
Optimized 2-lumen shaft construction
02
OTW DELIVERY SYSTEM
COATING
Circumferential Coating is
performed under Low Pressure inflation
leading to 100% surface area coating
REFOLDING
3 Folds
INFLATION
Homogeneous Drug Delivery
due to Circumferential Coating
03
Assuring Safety by
delivering Sirolimus
TECHNOLOGY
An innovative proprietary Nanolute technology providing better bioavailability of SIROLIMUS
DRUG
Sirolimus: A drug with proven safety profile
Sirolimus: A drug with proven safety profile
COATING
Unique coating technology leads to 100% balloon surface coating
CARRIER
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus
A biocompatible phospholipid drug carrier improving the adhesion property of Sirolimus
03
Documentation
Technical SpecificationsOrdering Information Guidewire CompatibilityTechnical Specifications[tech_detail]
[ballon]
Balloon
| Delivery System | Over-The-Wire |
| Balloon Compliance | Semi-Compliant |
| No. of Folds | 3 & 6 |
| Balloon Material | Polyamide |
| Guidewire Compatibility | 0.014″, 0.018″, 0.035″ |
DRUG/EXCIPIENT
Drug
Drug Dose
Drug Carrier
Sirolimus
1.27µg/mm²
Phospholipid
1.27µg/mm²
Phospholipid
BALLOON
Balloon Material
Catheter design
Catheter design
Polyamide
Rapid Exchange(RX) Design
Rapid Exchange(RX) Design
Ordering Information | Diameter | Length (Shaft Length = 90 cm) | ||||||
|---|---|---|---|---|---|---|---|
| 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | |
| 2.00 | CMDW18001 | CMDW18002 | CMDW18003 | CMDW18004 | CMDW18005 | CMDW18006 | CMDW18007 |
| 2.50 | CMDW18008 | CMDW18009 | CMDW18010 | CMDW18011 | CMDW18012 | CMDW18013 | CMDW18014 |
| 3.00 | CMDW18015 | CMDW18016 | CMDW18017 | CMDW18018 | CMDW18019 | CMDW18020 | CMDW18021 |
| 3.50 | CMDW18022 | CMDW18023 | CMDW18024 | CMDW18025 | CMDW18026 | CMDW18027 | CMDW18028 |
| 4.00 | CMDW18029 | CMDW18030 | CMDW18031 | CMDW18032 | CMDW18033 | CMDW18034 | CMDW18035 |
| 5.00 | CMDW18036 | CMDW18037 | CMDW18038 | CMDW18039 | CMDW18040 | CMDW18041 | CMDW18042 |
| 5.50 | CMDW18043 | CMDW18044 | CMDW18045 | CMDW18046 | CMDW18047 | CMDW18048 | CMDW18049 |
| 6.00 | CMDW18050 | CMDW18051 | CMDW18052 | CMDW18053 | CMDW18054 | CMDW18055 | CMDW18056 |
| 7.00 | CMDW18057 | NA | NA | NA | NA | NA | NA |
| 0.018″ OTW | Length (Shaft Length = 120 cm) | |||||||
|---|---|---|---|---|---|---|---|---|
| 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| 2.00 | CMDW18058 | CMDW18059 | CMDW18060 | CMDW18061 | CMDW18062 | CMDW18063 | CMDW18064 | |
| 2.50 | CMDW18065 | CMDW18066 | CMDW18067 | CMDW18068 | CMDW18069 | CMDW18070 | CMDW18071 | |
| 3.00 | CMDW18072 | CMDW18073 | CMDW18074 | CMDW18075 | CMDW18076 | CMDW18077 | CMDW18078 | |
| 3.50 | CMDW18079 | CMDW18080 | CMDW18081 | CMDW18082 | CMDW18083 | CMDW18084 | CMDW18085 | |
| 4.00 | CMDW18086 | CMDW18087 | CMDW18088 | CMDW18089 | CMDW18090 | CMDW18091 | CMDW18092 | |
| 5.00 | CMDW18093 | CMDW18094 | CMDW18095 | CMDW18096 | CMDW18097 | CMDW18098 | CMDW18099 | |
| 5.50 | CMDW18100 | CMDW18101 | CMDW18102 | CMDW18103 | CMDW18104 | CMDW18105 | CMDW18106 | |
| 6.00 | CMDW18107 | CMDW18108 | CMDW18109 | CMDW18110 | CMDW18111 | CMDW18112 | CMDW18113 | |
| 7.00 | CMDW18114 | NA | NA | NA | NA | NA | NA | |
| 0.018″ OTW | Length (Shaft Length = 150 cm) | |||||||
|---|---|---|---|---|---|---|---|---|
| 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| 2.00 | CMDW18115 | CMDW18116 | CMDW18117 | CMDW18118 | CMDW18119 | CMDW18120 | CMDW18121 | |
| 2.50 | CMDW18122 | CMDW18123 | CMDW18124 | CMDW18125 | CMDW18126 | CMDW18127 | CMDW18128 | |
| 3.00 | CMDW18129 | CMDW18130 | CMDW18131 | CMDW18132 | CMDW18133 | CMDW18134 | CMDW18135 | |
| 3.50 | CMDW18136 | CMDW18137 | CMDW18138 | CMDW18139 | CMDW18140 | CMDW18141 | CMDW18142 | |
| 4.00 | CMDW18143 | CMDW18144 | CMDW18145 | CMDW18146 | CMDW18147 | CMDW18148 | CMDW18149 | |
| 5.00 | CMDW18150 | CMDW18151 | CMDW18152 | CMDW18153 | CMDW18154 | CMDW18155 | CMDW18156 | |
| 5.50 | CMDW18157 | CMDW18158 | CMDW18159 | CMDW18160 | CMDW18161 | CMDW18162 | CMDW18163 | |
| 6.00 | CMDW18164 | CMDW18165 | CMDW18166 | CMDW18167 | CMDW18168 | CMDW18169 | CMDW18170 | |
| 7.00 | CMDW18171 | NA | NA | NA | NA | NA | NA | |
| 0.014" OTW | Length (Shaft Length = 90 cm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| 1.50 | CMDW14001 | NA | NA | NA | NA | NA | NA | NA | |
| 2.00 | NA | CMDW14002 | CMDW14003 | CMDW14004 | CMDW14005 | CMDW14006 | CMDW14007 | CMDW14008 | |
| 2.50 | NA | CMDW14009 | CMDW14010 | CMDW14011 | CMDW14012 | CMDW14013 | CMDW14014 | CMDW14015 | |
| 3.00 | NA | CMDW14016 | CMDW14017 | CMDW14018 | CMDW14019 | CMDW14020 | CMDW14021 | CMDW14022 | |
| 3.50 | NA | CMDW14023 | CMDW14024 | CMDW14025 | CMDW14026 | CMDW14027 | CMDW14028 | CMDW14029 | |
| 4.00 | NA | CMDW14030 | CMDW14031 | CMDW14032 | CMDW14033 | CMDW14034 | CMDW14035 | CMDW14036 | |
| 0.014" OTW | Length (Shaft Length = 120 cm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| 1.50 | CMDW14037 | NA | NA | NA | NA | NA | NA | NA | |
| 2.00 | NA | CMDW14038 | CMDW14039 | CMDW14040 | CMDW14041 | CMDW14042 | CMDW14043 | CMDW14044 | |
| 2.50 | NA | CMDW14045 | CMDW14046 | CMDW14047 | CMDW14048 | CMDW14049 | CMDW14050 | CMDW14051 | |
| 3.00 | NA | CMDW14052 | CMDW14053 | CMDW14054 | CMDW14055 | CMDW14056 | CMDW14057 | CMDW14058 | |
| 3.50 | NA | CMDW14059 | CMDW14060 | CMDW14061 | CMDW14062 | CMDW14063 | CMDW14064 | CMDW14065 | |
| 4.00 | NA | CMDW14066 | CMDW14067 | CMDW14068 | CMDW14069 | CMDW14070 | CMDW14071 | CMDW14072 | |
| 0.014" OTW | Length (Shaft Length = 150 cm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| 1.50 | CMDW14073 | NA | NA | NA | NA | NA | NA | NA | |
| 2.00 | NA | CMDW14074 | CMDW14075 | CMDW14076 | CMDW14077 | CMDW14078 | CMDW14079 | CMDW14080 | |
| 2.50 | NA | CMDW14081 | CMDW14082 | CMDW14083 | CMDW14084 | CMDW14085 | CMDW14086 | CMDW14087 | |
| 3.00 | NA | CMDW14088 | CMDW14089 | CMDW14090 | CMDW14091 | CMDW14092 | CMDW14093 | CMDW14094 | |
| 3.50 | NA | CMDW14095 | CMDW14096 | CMDW14097 | CMDW14098 | CMDW14099 | CMDW14100 | CMDW14101 | |
| 4.00 | NA | CMDW14102 | CMDW14103 | CMDW14104 | CMDW14105 | CMDW14106 | CMDW14107 | CMDW14108 | |
| 0.035" OTW | Length (Shaft Length = 90 cm = 900 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMDW35057 | CMDW35058 | CMDW35059 | CMDW35060 | NA | NA | NA | NA |
| 4.00 | CMDW35061 | CMDW35062 | CMDW35063 | CMDW35064 | CMDW35065 | CMDW35066 | CMDW35067 | CMDW35068 | |
| 5.00 | CMDW35069 | CMDW35070 | CMDW35071 | CMDW35072 | CMDW35073 | CMDW35074 | CMDW35075 | CMDW35076 | |
| 6.00 | CMDW35077 | CMDW35078 | CMDW35079 | CMDW35080 | CMDW35081 | CMDW35082 | CMDW35083 | CMDW35084 | |
| 7.00 | CMDW35085 | CMDW35086 | CMDW35087 | CMDW35088 | CMDW35089 | CMDW35090 | CMDW35091 | CMDW35092 | |
| 8.00 | CMDW35093 | CMDW35094 | CMDW35095 | CMDW35096 | CMDW35097 | CMDW35098 | CMDW35099 | CMDW35100 | |
| 9.00 | CMDW35101 | CMDW35102 | CMDW35103 | CMDW35104 | NA | NA | NA | NA | |
| 10.00 | CMDW35105 | CMDW35106 | CMDW35107 | CMDW35108 | NA | NA | NA | NA | |
| 12.00 | CMDW35109 | CMDW35110 | CMDW35111 | CMDW35112 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 45 cm = 450 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMDW35113 | CMDW35114 | CMDW35115 | CMDW35116 | NA | NA | NA | NA |
| 4.00 | CMDW35117 | CMDW35118 | CMDW35119 | CMDW35120 | CMDW35121 | CMDW35122 | NA | NA | |
| 5.00 | CMDW35123 | CMDW35124 | CMDW35125 | CMDW35126 | CMDW35127 | CMDW35128 | NA | NA | |
| 6.00 | CMDW35129 | CMDW35130 | CMDW35131 | CMDW35132 | CMDW35133 | CMDW35134 | NA | NA | |
| 7.00 | CMDW35135 | CMDW35136 | CMDW35137 | CMDW35138 | CMDW35139 | NA | NA | NA | |
| 8.00 | CMDW35140 | CMDW35141 | CMDW35142 | CMDW35143 | CMDW35144 | NA | NA | NA | |
| 9.00 | CMDW35145 | CMDW35146 | CMDW35147 | CMDW35148 | NA | NA | NA | NA | |
| 10.00 | CMDW35149 | CMDW35150 | CMDW35151 | CMDW35152 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 130 cm = 1300 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMDW35153 | CMDW35154 | CMDW35155 | CMDW35156 | NA | NA | NA | NA |
| 4.00 | CMDW35157 | CMDW35158 | CMDW35159 | CMDW35160 | CMDW35161 | CMDW35162 | CMDW35163 | CMDW35164 | |
| 5.00 | CMDW35165 | CMDW35166 | CMDW35167 | CMDW35168 | CMDW35169 | CMDW35170 | CMDW35171 | CMDW35172 | |
| 6.00 | CMDW35173 | CMDW35174 | CMDW35175 | CMDW35176 | CMDW35177 | CMDW35178 | CMDW35179 | CMDW35180 | |
| 7.00 | CMDW35181 | CMDW35182 | CMDW35183 | CMDW35184 | CMDW35185 | CMDW35186 | CMDW35187 | CMDW35188 | |
| 8.00 | CMDW35189 | CMDW35190 | CMDW35191 | CMDW35192 | CMDW35193 | CMDW35194 | CMDW35195 | CMDW35196 | |
| 9.00 | CMDW35197 | CMDW35198 | CMDW35199 | CMDW35200 | NA | NA | NA | NA | |
| 10.00 | CMDW35201 | CMDW35202 | CMDW35203 | CMDW35204 | NA | NA | NA | NA | |
| 12.00 | CMDW35205 | CMDW35206 | CMDW35207 | CMDW35208 | NA | NA | NA | NA | |
| 0.035" OTW | Length (Shaft Length = 150 cm = 1500 mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 20.00 | 40.00 | 60.00 | 80.00 | 100.00 | 120.00 | 150.00 | 200.00 | ||
| Diameter | 3.00 | CMDW35209 | CMDW35210 | CMDW35211 | CMDW35212 | NA | NA | NA | NA |
| 4.00 | CMDW35213 | CMDW35214 | CMDW35215 | CMDW35216 | CMDW35217 | CMDW35218 | CMDW35219 | CMDW35220 | |
| 5.00 | CMDW35221 | CMDW35222 | CMDW35223 | CMDW35224 | CMDW35225 | CMDW35226 | CMDW35227 | CMDW35228 | |
| 6.00 | CMDW35229 | CMDW35230 | CMDW35231 | CMDW35232 | CMDW35233 | CMDW35234 | CMDW35235 | CMDW35236 | |
| 7.00 | CMDW35237 | CMDW35238 | CMDW35239 | CMDW35240 | CMDW35241 | CMDW35242 | CMDW35243 | CMDW35244 | |
| 8.00 | CMDW35245 | CMDW35246 | CMDW35247 | CMDW35248 | CMDW35249 | CMDW35250 | CMDW35251 | CMDW35252 | |
| 9.00 | CMDW35253 | CMDW35254 | CMDW35255 | CMDW35256 | NA | NA | NA | NA | |
| 10.00 | CMDW35257 | CMDW35258 | CMDW35259 | CMDW35260 | NA | NA | NA | NA | |
| 12.00 | CMDW35261 | CMDW35262 | CMDW35263 | CMDW35264 | NA | NA | NA | NA | |
Guidewire Compatibility| Guiding Catheter Compatibility | |
|---|---|
| 0.014” | 5F |
| 0.018” | 5F, 6F and 7F |
| 0.035” | 7F, 8F and 9F |
| Sheath Compatibility | |
|---|---|
| 0.014” | 4F |
| 0.018” | 4F to 5F |
| 0.035” | 5F to 7F |
