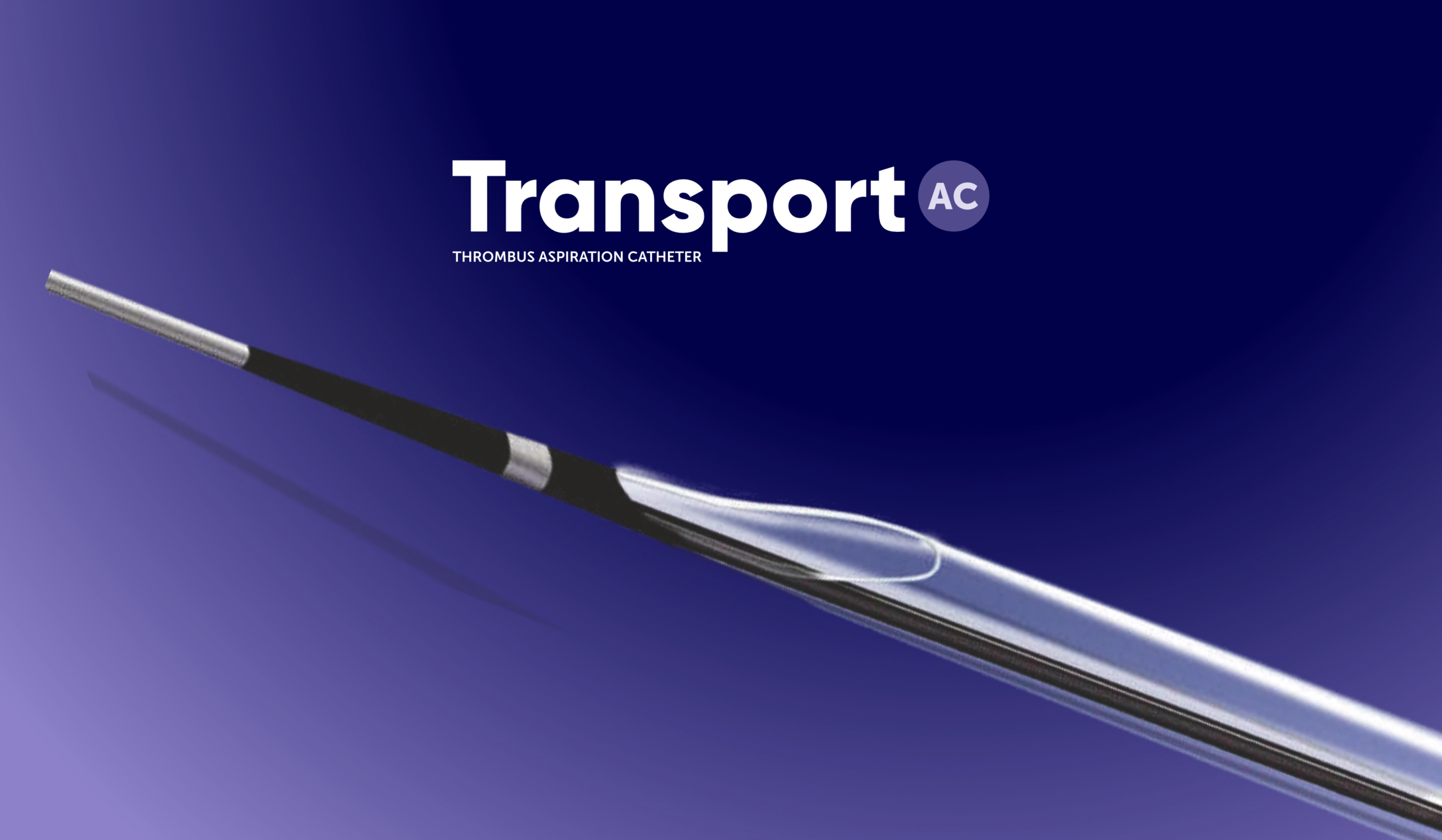

Transport AC catheter (TAC) is a Rapid Exchange Thrombus Aspiration Catheter used for removal of thrombus and debris in the central and peripheral circulatory system, including saphenous vein grafts via percutaneous suction in PTCA, PTA and Stenting procedures.
01
A powerful tool for quickly and effectively removing thrombus and debris from the central and peripheral circulatory system.
Efficiency
A Single-Handed Operator Device
Coating on Delivery System
Surmodics Photolink Coating for easy navigation through torturous anatomy
Large aspiration lumen
Translucid Aspirated Lumen
Rx port at 25 cm
Helps in effective aspiration even in distal anatomies
Dedicated Tip Design with Radiopaque Marker
Dedicated Tip Design with Radiopaque Marker
Consistent shaft construction
Constructive Kink Resistant Shaft
Aspiration speed
Constructive Kink Resistant Shaft
02

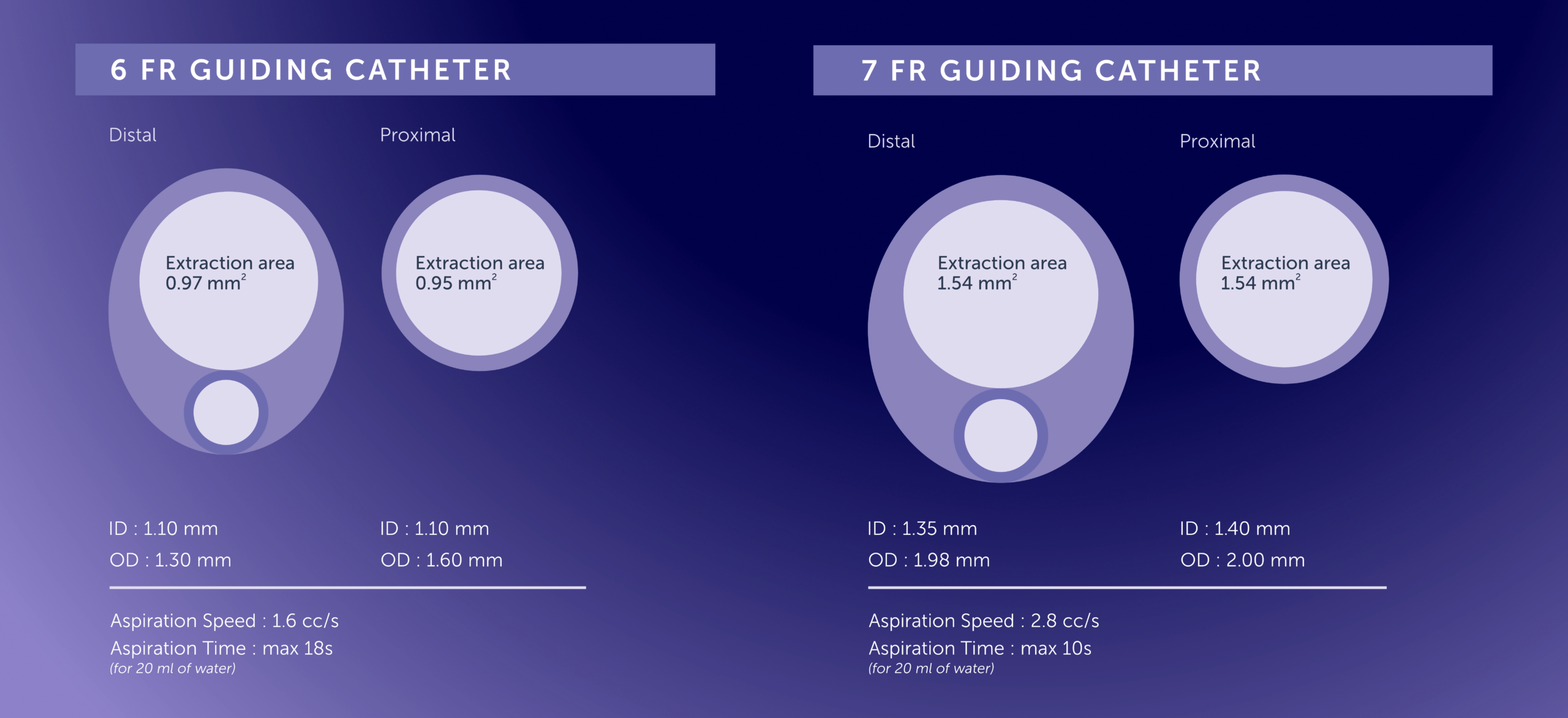

Choice of two Sizes
6F And 7F Guide Catheter Compatibility For Different Coronary And Peripheral Applications
COATING
Circumferential Coating is
performed under Low Pressure inflation
leading to 100% surface area coating
REFOLDING
3 Folds
INFLATION
Homogeneous Drug Delivery
due to Circumferential Coating
03

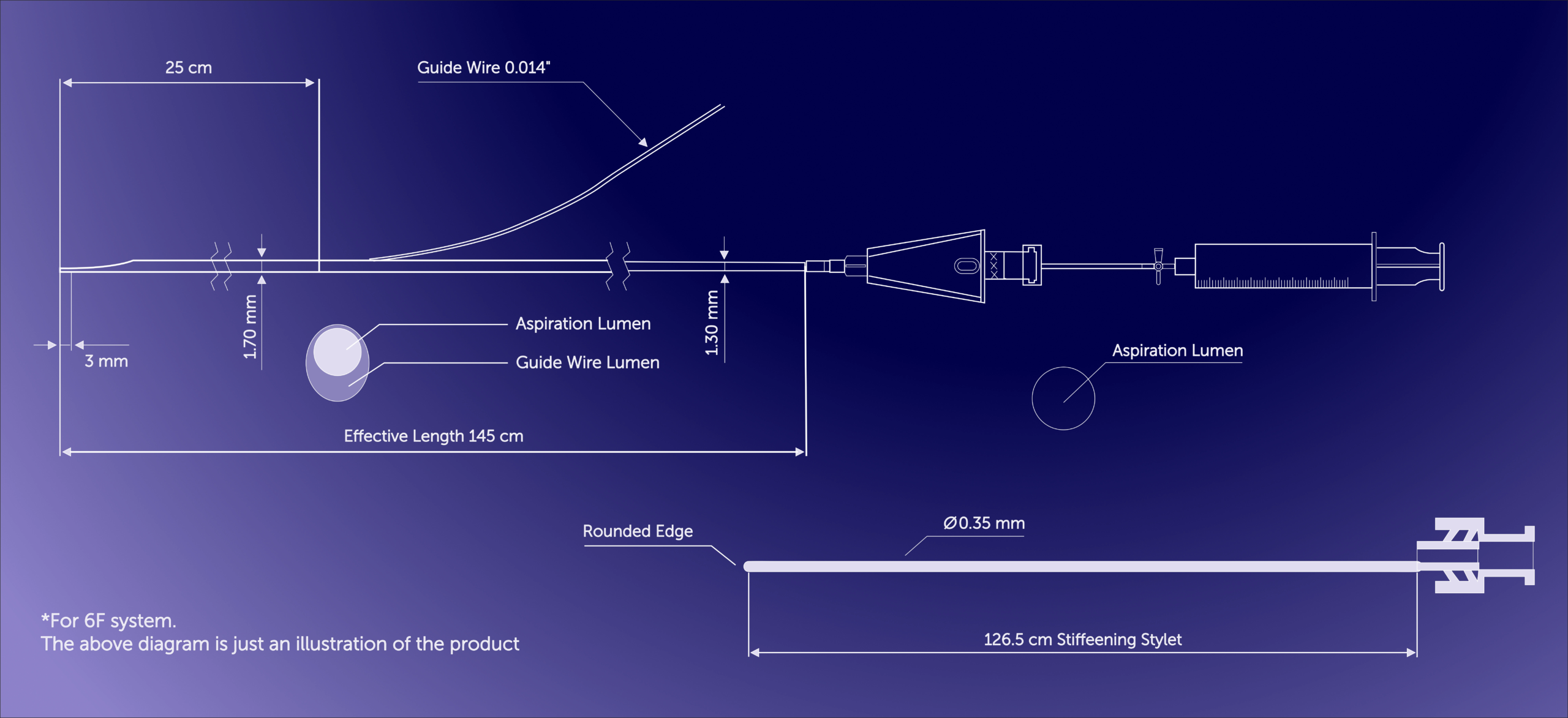

Design of Catheter & of Stylet
04

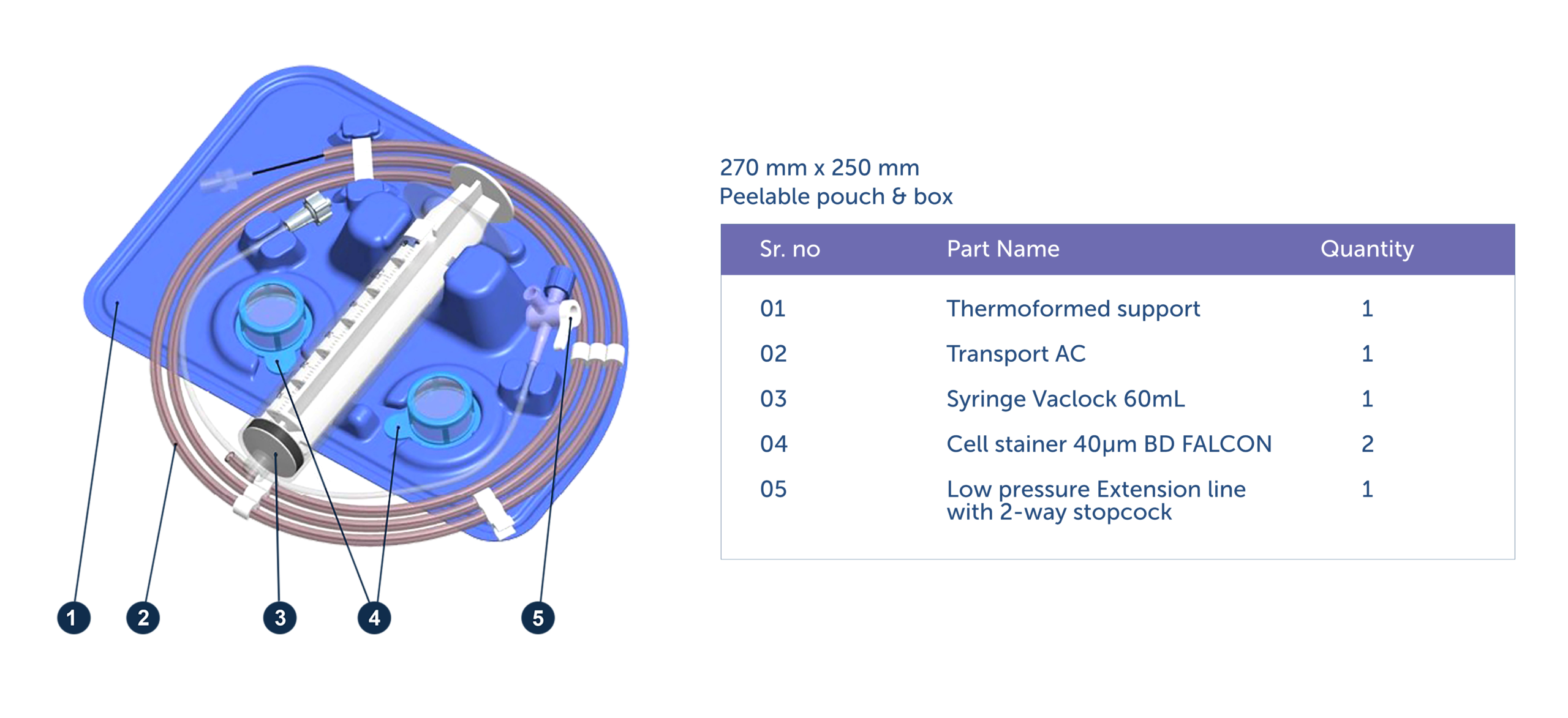

Packaging Consists
05
Documentation
Technical SpecificationsOrdering Information Technical Specifications[tech_detail]
[ballon]
Usable Length
| Tip Entry Profile | 0.015 |
| Radiopaque Marker | 1 mm at 4mm from tip |
| Guide wire compatibility | 0.014 |
DRUG/EXCIPIENT
Drug
Drug Dose
Drug Carrier
Sirolimus
1.27µg/mm²
Phospholipid
1.27µg/mm²
Phospholipid
BALLOON
Balloon Material
Catheter design
Catheter design
Polyamide
Rapid Exchange(RX) Design
Rapid Exchange(RX) Design
Ordering Information | Reference | Description | Box Quantity |
|---|---|---|
| 04030411 | Transport AC 6 F Stiff Sterile | 1 Per Box |
| 04030412 | Transport AC 7F Stiff Sterile | 1 Per Box |
